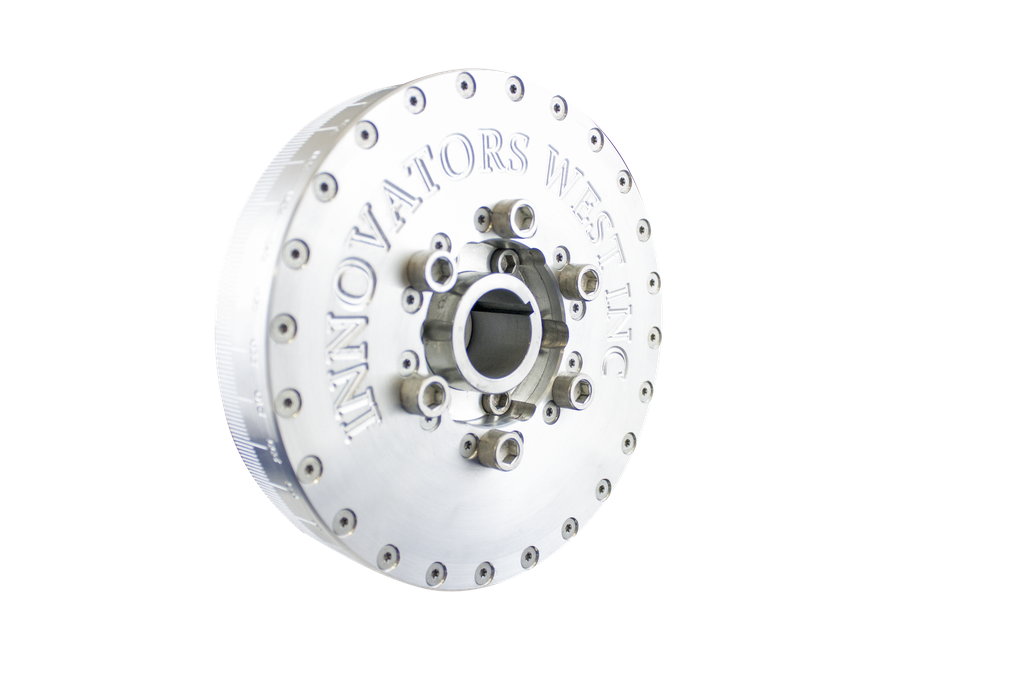

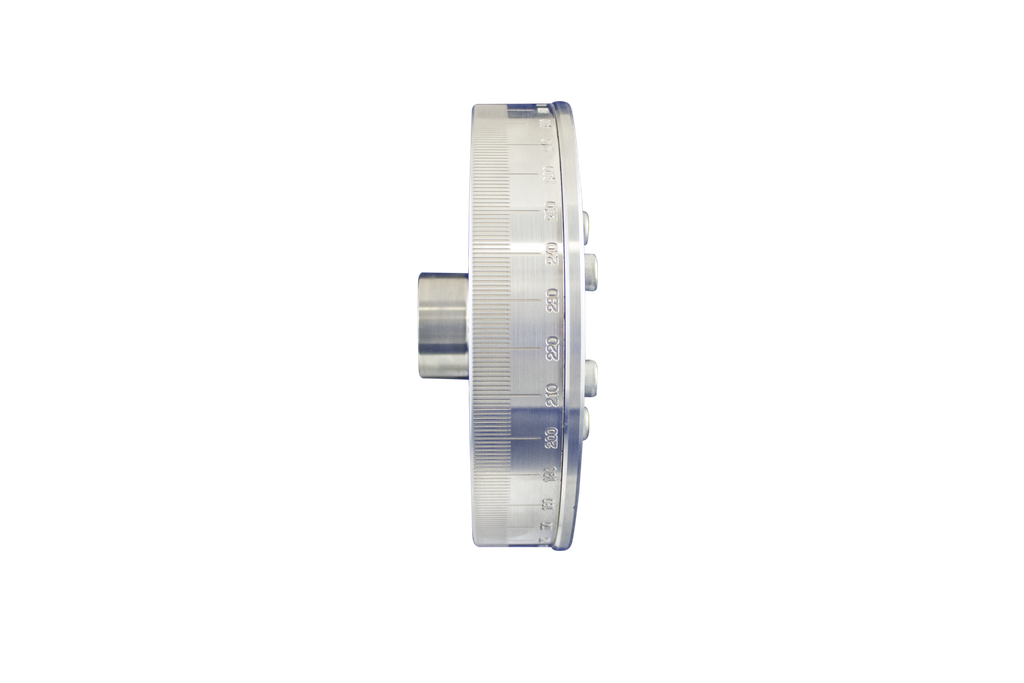

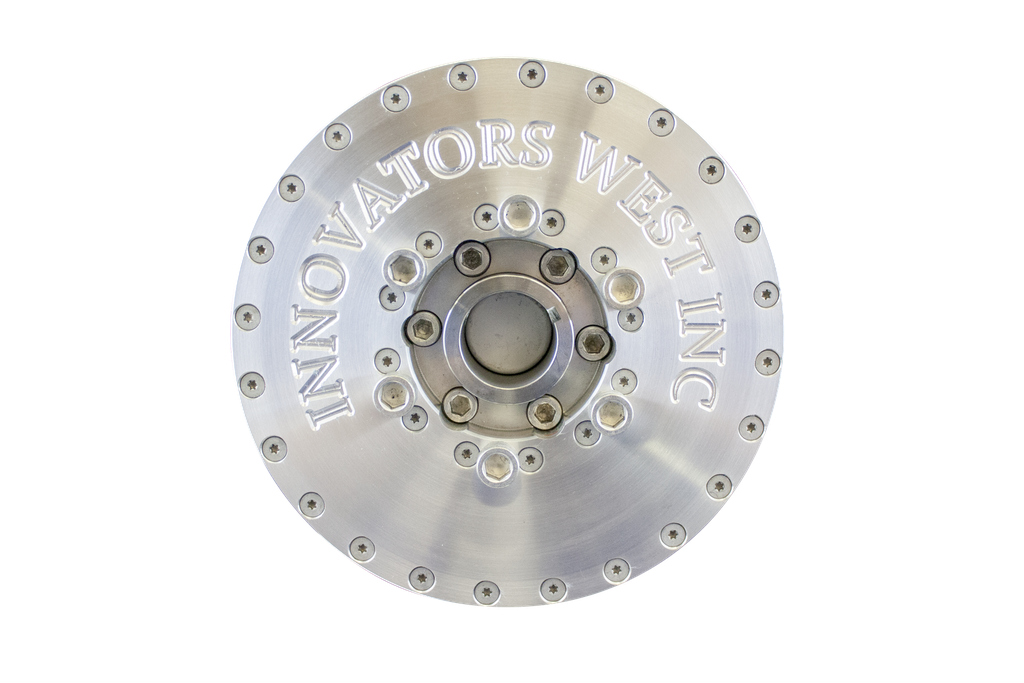

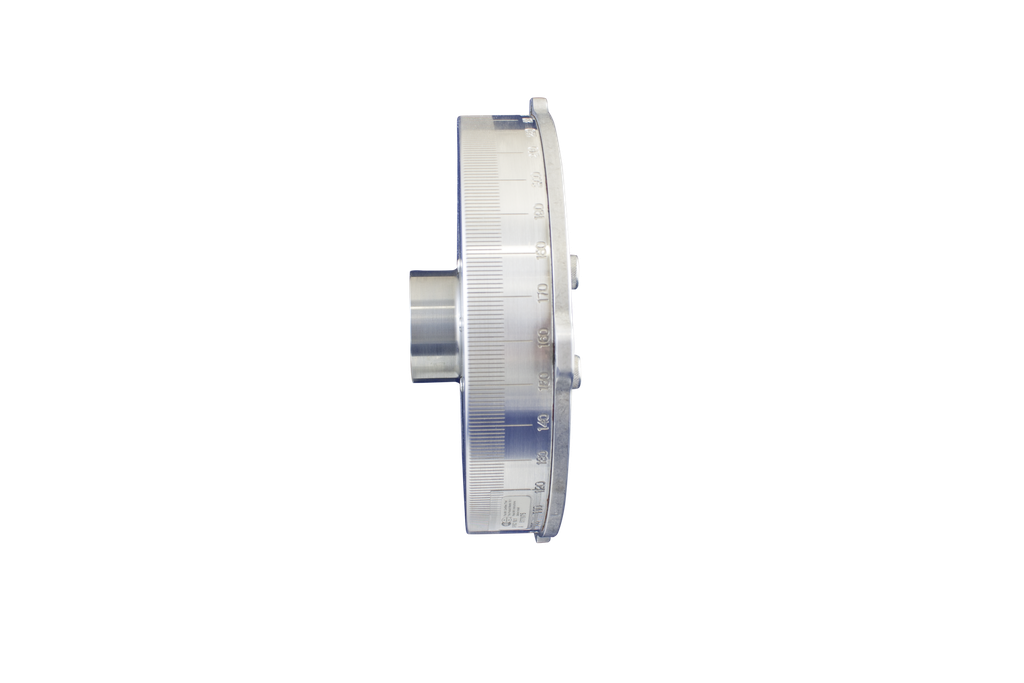

Small Block Chevy 7" Harmonic Damper

Part #: 102
$ 390.72 $ 528.00

  • Hub Style
  • Crank Trigger Magnets
  • Keyway Options - Standard Single Keyway
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Description

The #102 damper features the Chevy 6-Bolt Bolt Pattern and works with OEM Pulleys and Hardware. For engines needing a smaller damper for additional clearance, please see the 6.75" #107 damper. For Supercharged engines with the BBC crank snout please view damper #107B (6.75" Diameter) or #109 (7" Diameter).



  • For Small Cubic Inch Small Block Chevy

  • Comes with Single 3/16" Keyway

  • Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit.


Technical Details

Outer Diameter 7"
Weight 8.0 lbs
NOTE The Blower Hub option is a thicker hub that provides greater resistance to hub cracking on supercharged applications (12# of boost or more). This option includes a new custom made timing cover seal to adapt the oversized hub to a stock timing cover.

Instructions

Damper Installation Instructions [PDF Format].
Damper Hub Honing Instructions [PDF Format].
Harmonic Damper Installation YouTube Video
