LT5 ZR1 6.2L Corvette 11-Rib - 9% Overdrive Damper

Part #: 775
$ 495.66 $ 751.00

  • Hub Style
  • Keyway Options - Standard Single Keyway 5mm
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Keyway Options: Standard Single Keyway 5mm

Description

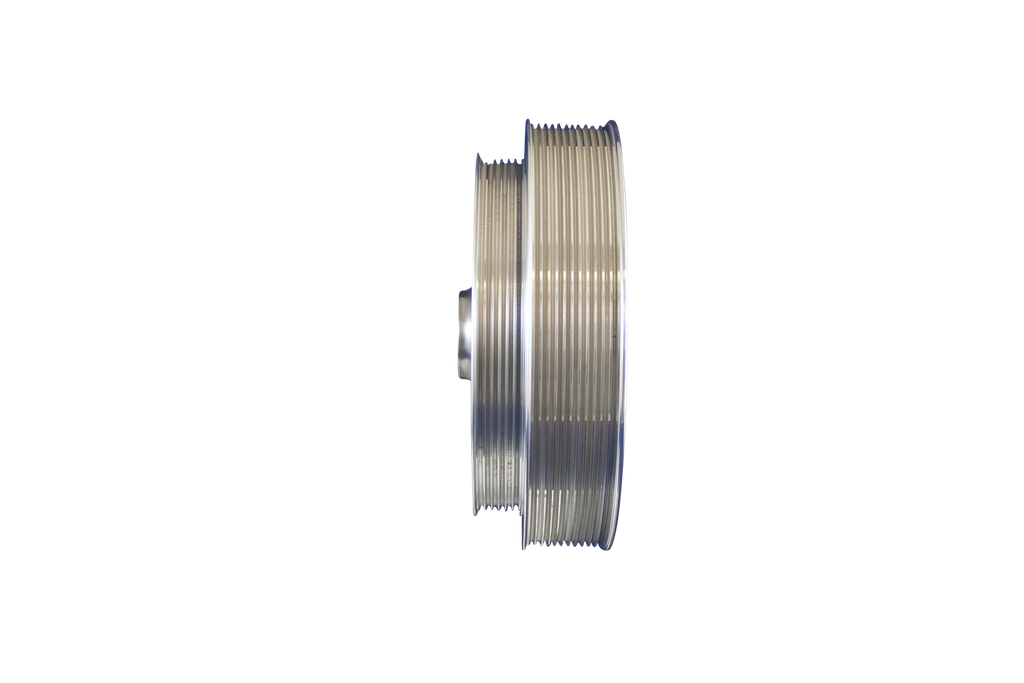

11 Rib 9% Overdrive SFI 18.1 8.77" OD Harmonic Balancer for GM 2019 ZRL LT5 6.2L Corvette Supercar. This damper is fully engraved for setting timing accurately.

Features an all aluminum case design for light weight, stress-proof steel hub and 1050 steel inertia rings for durability. Wet clutch friction design style with precision machined harmonic dampening for street and race engines.




  • Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit.


Technical Details

Diameter 8.770"
Overdrive 9%
Weight 9.8 lbs
NOTE The Super Duty Blower Hub option is a thicker hub that provides greater resistance to hub cracking under high power supercharged applications (750 rwhp and greater). This option includes a new custom made timing cover seal to adapt the oversized hub to a

Instructions

GM LSX Damper Installation Instructions [PDF Format].
Damper Hub Honing Instructions [PDF Format].
