Description

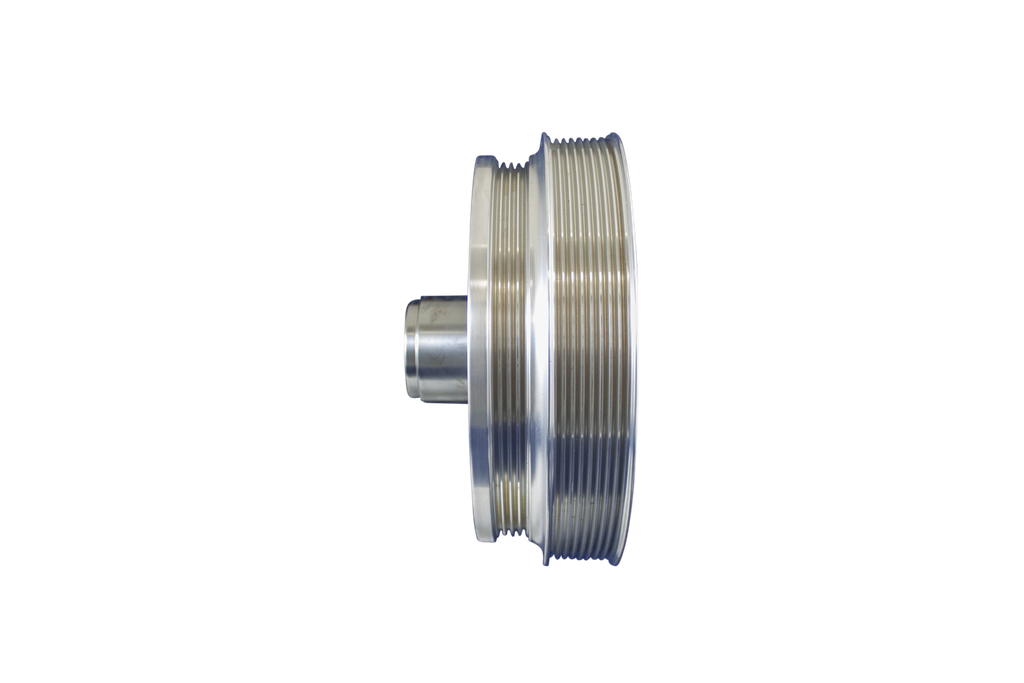

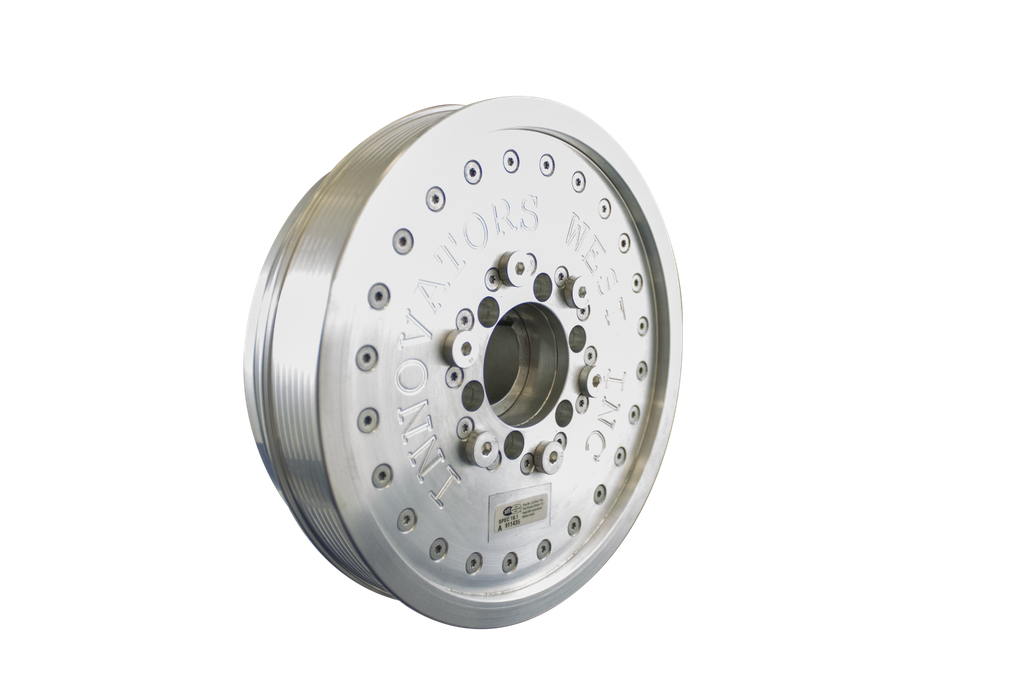

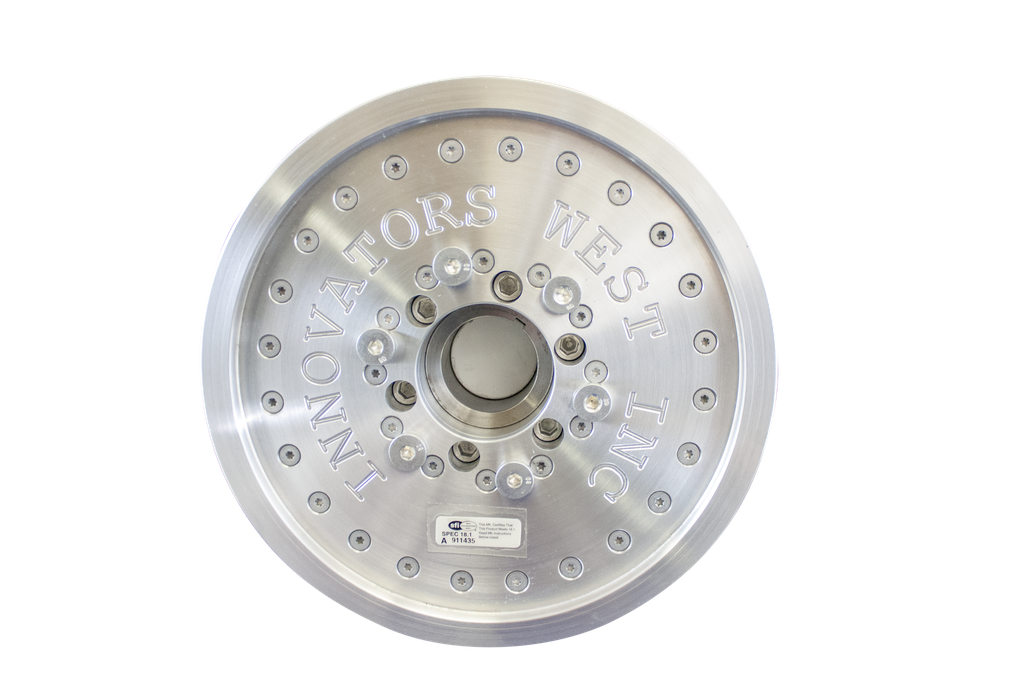

SFI 18.1 Harmonic Damper for GM 98-02 LS1 F-Body & 04-06 LS1/LS2 GTO - w/ Crank Bolt. Features 8 Rib drive & 10% Overdrive. Complete F-body and GTO Conversion Kits also available, see options below.
This damper comes standard with 3/16" Keyway for use with aftermarket crankshafts.
NOTE: Although this damper is designed with 8 belt grooves, it may be used with the stock 6-rib accessory drive with no issues.
This damper comes standard with 3/16" Keyway for use with aftermarket crankshafts.
NOTE: Although this damper is designed with 8 belt grooves, it may be used with the stock 6-rib accessory drive with no issues.
- Comes with Single 3/16" Keyway
- Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit.
Technical Details
| Diameter | 8.125" |
|---|---|
| Weight | 10.2 lbs |
| NOTE | The Super Duty Blower Hub option is a thicker hub that provides greater resistance to hub cracking under high power supercharged applications (750 rwhp and greater). This option includes a new custom made timing cover seal to adapt the oversized hub to a |
Instructions
GM LSX Damper Installation Instructions [PDF Format].
Damper Hub Honing Instructions [PDF Format].
Damper Hub Honing Instructions [PDF Format].
