Description

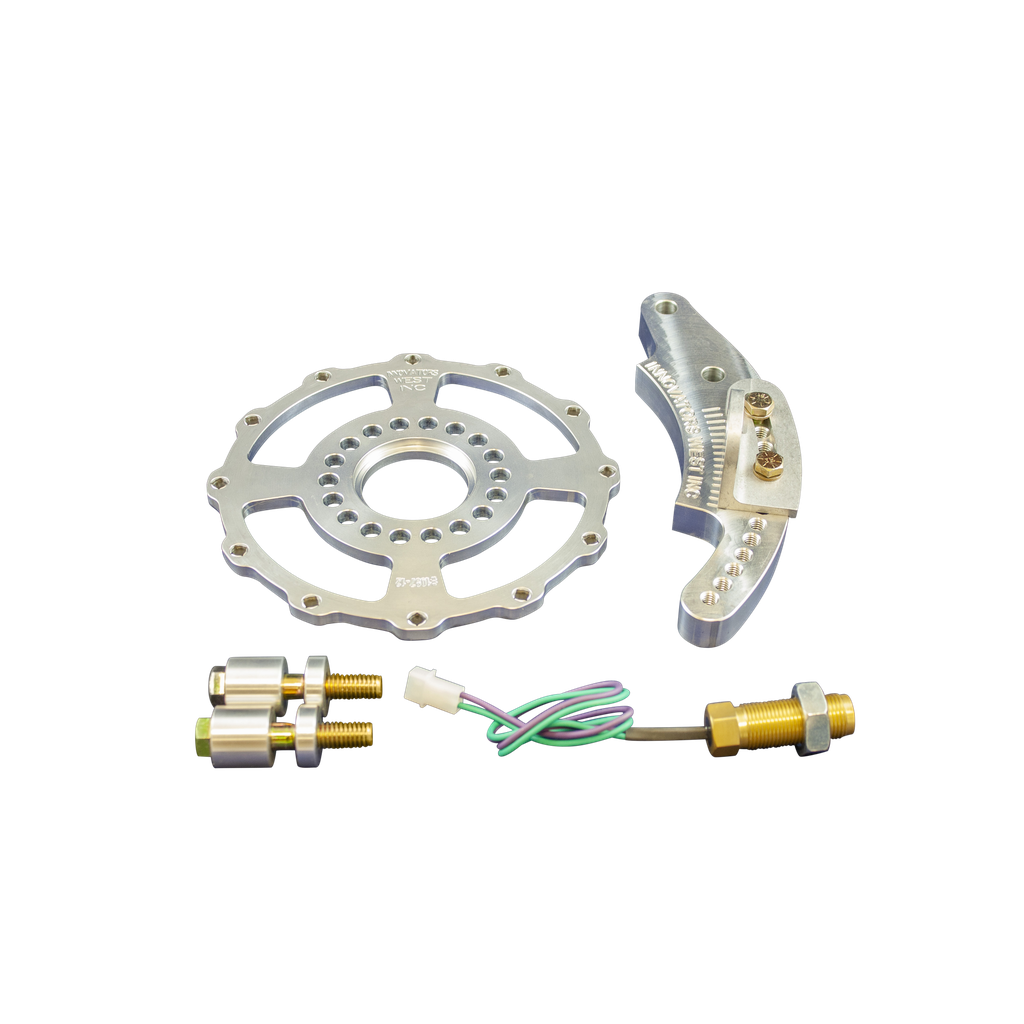

The Innovators West Crank Trigger Kit allows you to easily add a crank trigger sensor to your Big Block Chevy Balancer. This model is designed for use with a 7" Dia Damper and features a #1097-12 Crank Trigger Wheel with 12 Neodymium Magnets for accurate position sensing. We include your chose of a Passenger or Drivers Side bracket. Finally we include the Innovators West #964 Crank Trigger Sensor with MSD compatible wiring plug.
- Application: Big Block Chevy 7" Dampers
- 12 Magnet Style
- NOTE: This trigger wheel can be converted to a 12-1 (Missing magnet) style trigger wheel by removing one of the magnets. Magnets can be removed with a small press or by using a sharp punch to fracture the magnet and remove the pieces.
Technical Details
| Bolt Pattern | 18 x 3.200" |
|---|---|
| Overall Diameter w/ Magnets | 7.711" |
| # of Magnets | 12 |
| Trigger Wheel Thickness | .300" |
| Register Size (Rear) | Male 2.275" (BBC) |
| Register Size (Front) | Female 2.280" (BBC) |
| Bracket Location | Driver or Passenger Side |
