BBC Cam Sync Bracket Kit - Standard Cam Height

BBC Cam Sync Bracket Kit - Standard Cam Height

Part #: 6024
$ 92.40 $ 120.00

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Description

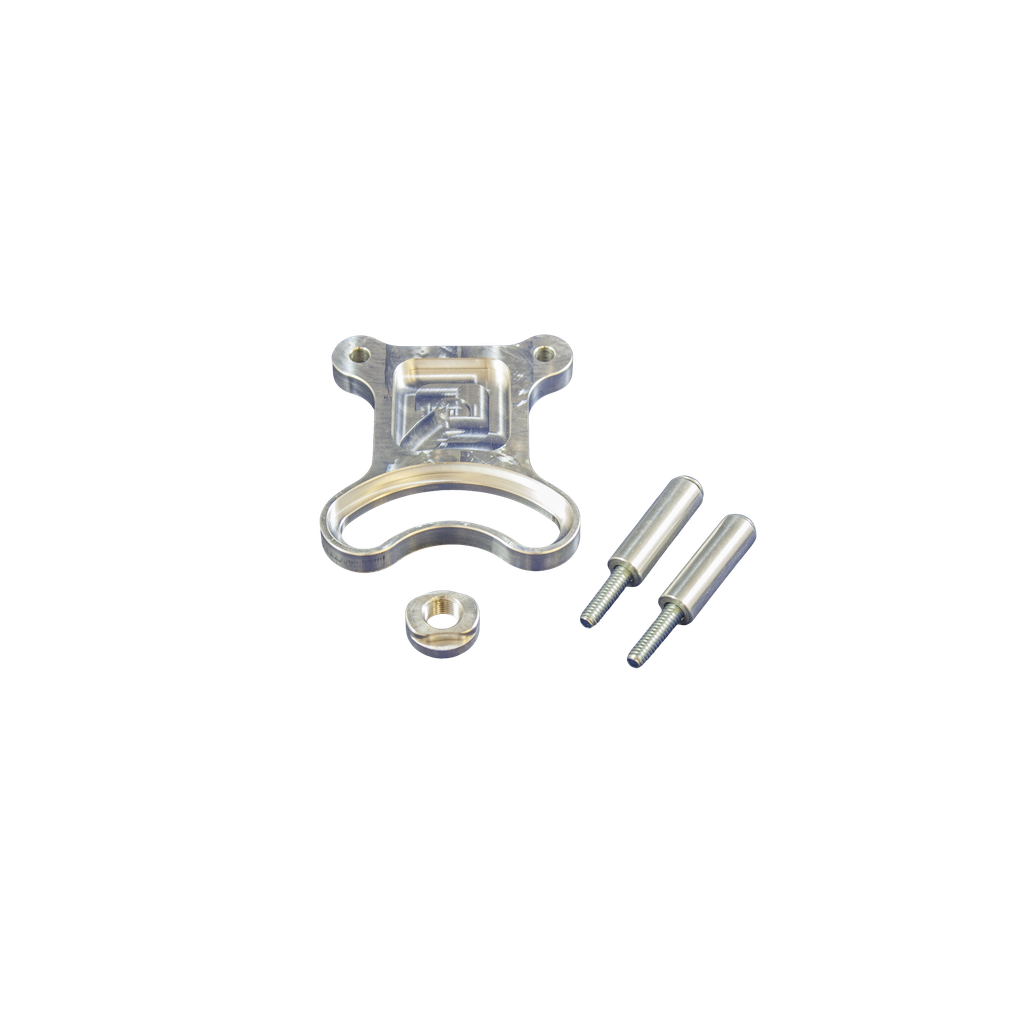

The #6024 cam sync bracket is designed to bolt onto the Innovators West BBC standard cam height belt drive timing system cover (#5100). The bracket allows the installation of a M12-1.0 sensor to be screwed into the sliding bracket. A small magnet can be installed into the upper cam pulley hub for use with the sensor. The magnet can be installed by drilling and tapping a 1/4"-20 hole at 3.00" diameter (1.500 Radius) on the upper cam drive hub. The bracket is designed to allow for +- 30* of sensor movement.

Holley Sensor and Magnet Kit - #554-127
Holley Magnet Only - #554-126
