Description

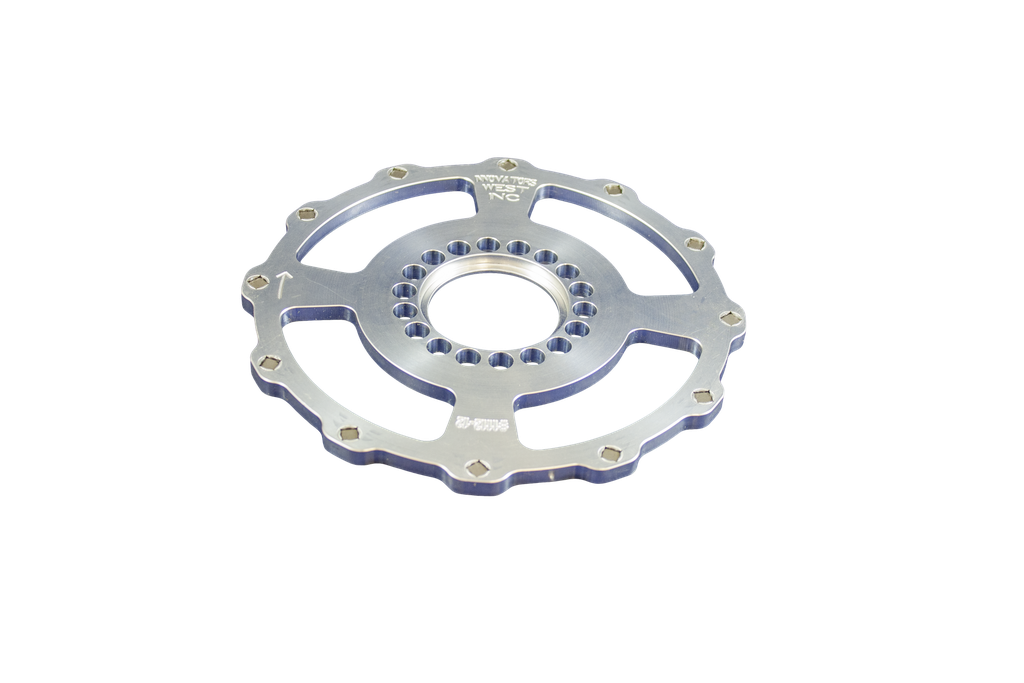

Billet Aluminum Crank Trigger Wheel for Root Blower (BDS) applications. 12-Magnet Version that works with Innovators West Crank Trigger Sensor & Brackets or MSD.
- Application: Root Blower (BDS)
- 12-Magnet Version
- Uses High Quality Neodymium Magnets
- NOTE: This trigger wheel will only work with dampers that have the 2.760" bolt pattern and 2" male pulley register. If the 2" male pulley register does not stick out past the wheel, the Innovators West #1118 BDS Pulley Adapter can be added onto the front of the trigger wheel to extend the 2" male register out to center up a blower pulley.
- NOTE: This trigger wheel can be converted to a 12-1 (Missing magnet) style trigger wheel by removing one of the magnets. Magnets can be removed with a small press or by using a sharp punch to fracture the magnet and remove the pieces.
Technical Details
| Bolt Pattern | 18 x 2.760" |
|---|---|
| Overall Diameter w/ Magnets | 7.711" |
| # of Magnets | 12 |
| Trigger Wheel Thickness | .300" |
| Register Size (Rear) | 2.000" Through Hole (Registers on Male 2" nose on damper) |
| Register Size (Front) | 2.280" Female (BBC) (Can be used with Innovators West #1118 BDS Pulley Adapter if a 2" male extension is needed) |
